Understanding the Stretch Forming Process

What Is Profile Stretch Forming?

Profile stretch forming is an advanced metal forming process that applies controlled axial tension combined with bending to produce precise 2D and 3D geometries.

Unlike conventional bending methods, stretch forming allows the material to reach or slightly exceed its yield strength before forming. This enables the material to deform plastically in a controlled manner, resulting in:

• Reduced springback
• Lower residual stress
• Improved dimensional accuracy
• Higher material utilization

Key Advantages of Stretch Forming

Stretch forming is a highly repeatable and precision-driven process with the following benefits:

• High dimensional accuracy and repeatability
• Capability to form complex geometries
• Reduced assembly operations
• Minimal post-weld or machining deformation
• Improved structural consistency

Basic Process Workflow

1. Define the Bending Radius

The bending radius is determined based on application requirements.

In many industrial applications (such as automotive components), a radius of 2–3 × profile height (T) is commonly used to balance performance and material efficiency.

---

2. Evaluate Material Properties

Material thickness and mechanical properties are analyzed to determine forming behavior and required tension.

Typical materials include:

• Aluminum alloys
• Stainless steel
• Carbon steel

---

3. Select Forming Method

The forming method is selected based on geometry, material, and precision requirements.

Common methods include:

CNC-controlled stretch forming

Direct stretch forming

Multi-point forming

Three-point / four-point forming

Stretch forming is a highly repeatable and precision-driven process with the following benefits:

• High dimensional accuracy and repeatability
• Capability to form complex geometries
• Reduced assembly operations
• Minimal post-weld or machining deformation
• Improved structural consistency

Process Characteristics

• Not suitable for very small radii due to risk of cracking

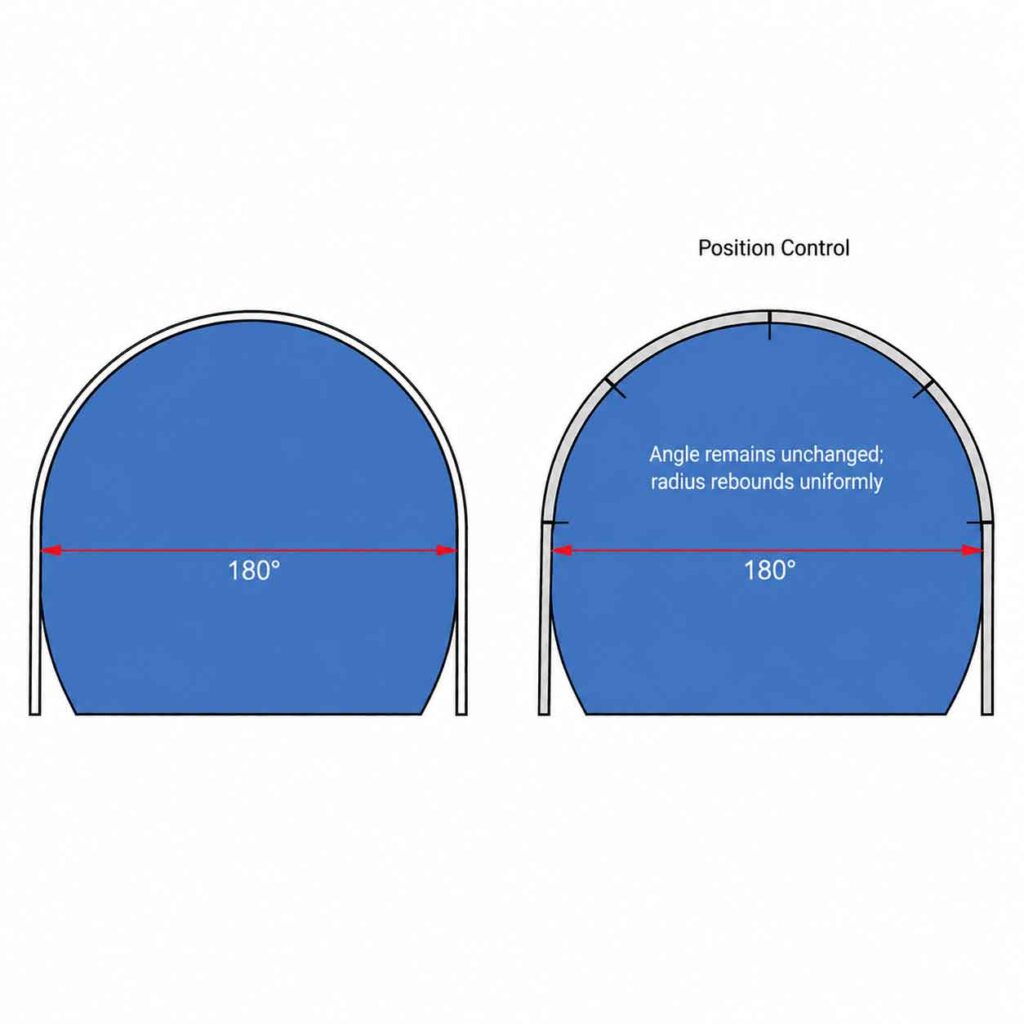

• Stretch forming typically handles bending angles up to 180°
• The material elongates during forming (final length increases slightly)
• Clamping allowance is required at both ends of the profile

Minimum Bending Radius Factors

The achievable bending radius depends on several factors:

• Material quality – Uniform materials reduce cracking risk
• Profile geometry – Simpler shapes bend more easily
• Wall thickness – Thicker sections improve stability
• Section structure – Closed sections perform better
• Load symmetry – Symmetrical stress improves forming quality

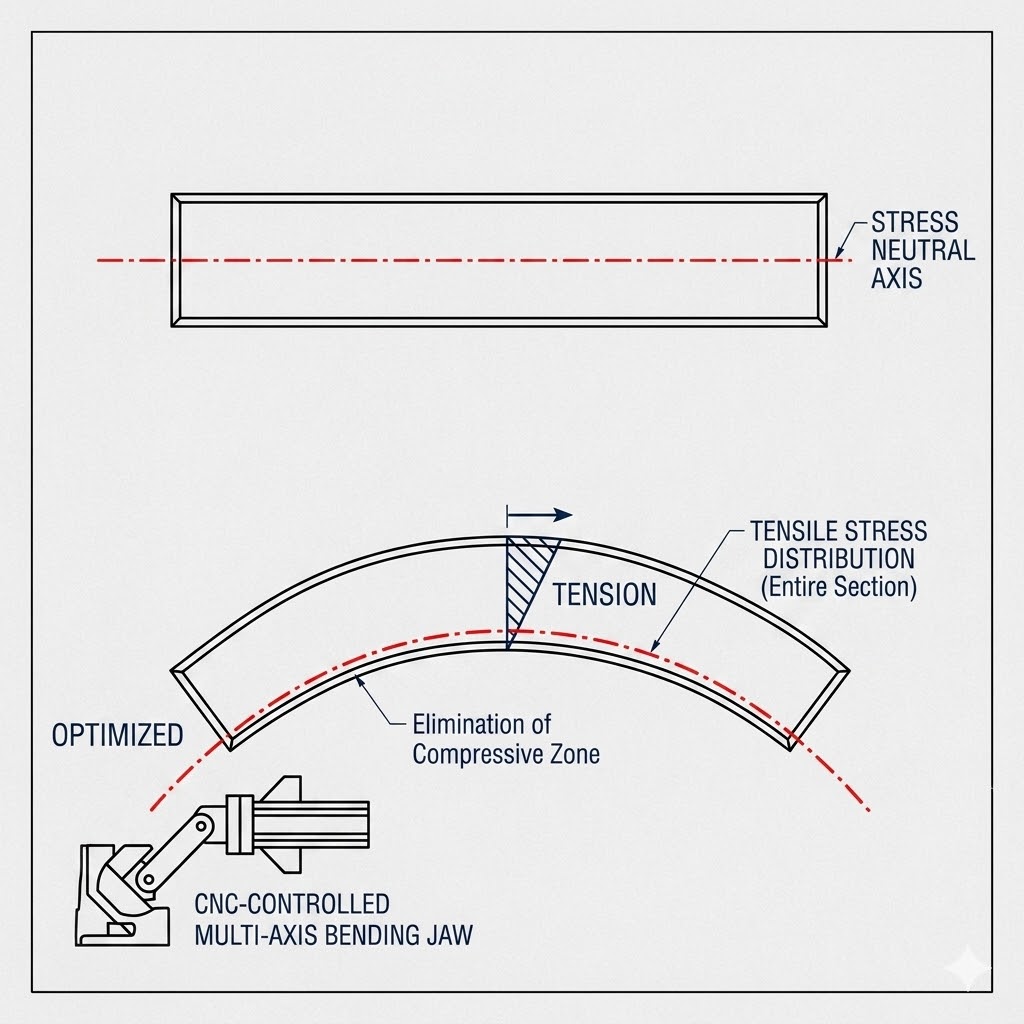

Core Principle: Neutral Layer Control

In stretch forming, controlling the neutral layer is essential to achieving stable forming results.

• Initial state: Neutral layer is centered
• Non-CNC forming: Insufficient stretching → wrinkling
• Overstretching: Leads to deformation or cracking
• CNC stretch forming: Precisely controls the neutral layer position

👉 This ensures:

• Controlled material flow
• Minimal wrinkling
• Reduced cross-section deformation

Challenges in Conventional Bending

Traditional bending methods often suffer from:

• Poor repeatability between batches
• High trial-and-error costs
• Material waste
• Unstable forming quality
• Twisting, wrinkling, and cracking
• Surface defects and tolerance mismatch

Why Stability Matters in Stretch Forming

The key challenge in profile bending is not shape—but process stability. Material behavior varies due to:

• Batch inconsistency
• Yield strength variation (±5%)
• Temperature differences
• Extrusion speed

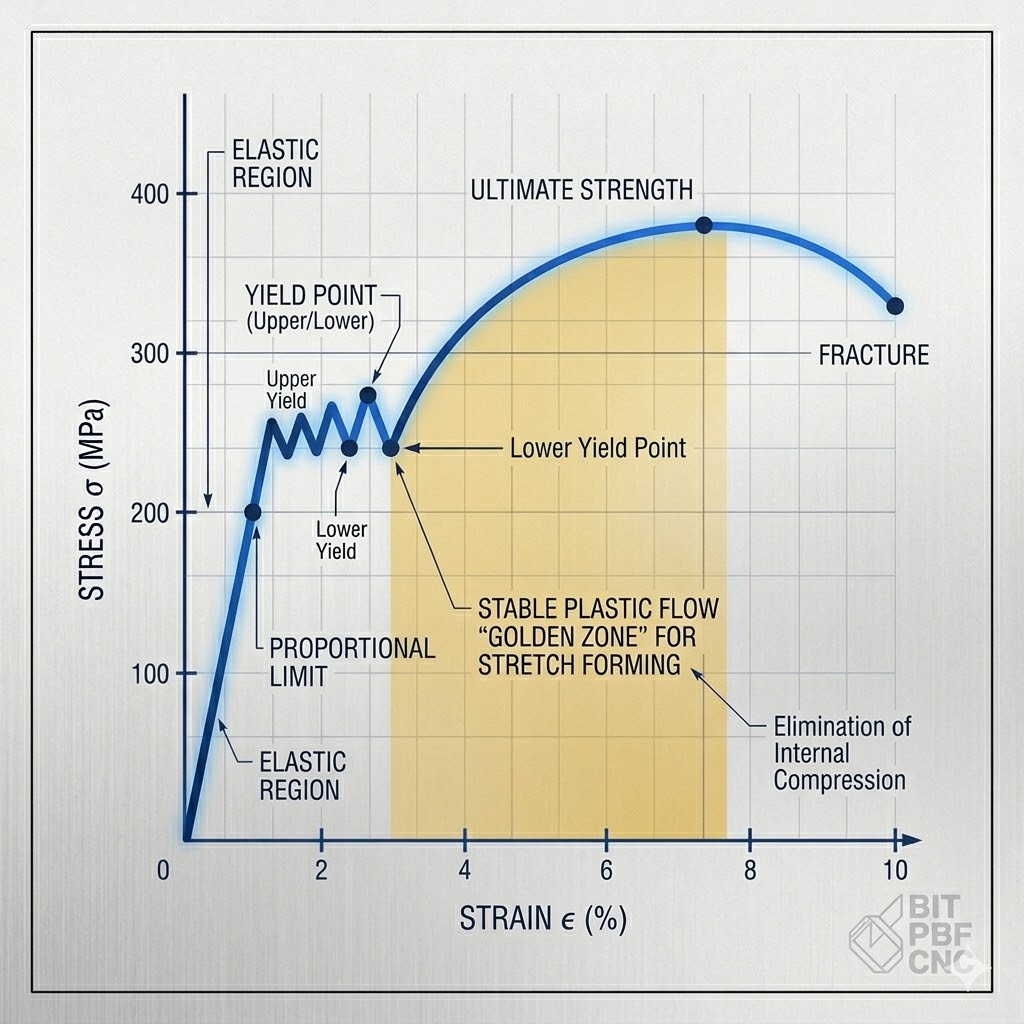

Solution: Controlled Plastic Deformation

Stretch forming solves these challenges through:

• Reduced dependency on operator experience
• Controlled tensile yielding
• Pre-stretching before bending
• CNC-controlled forming paths

From Trial-and-Error to Controlled Production

With advanced CNC stretch forming:

• Repeatability is ensured across batches
• The process becomes predictable
• Material waste is minimized
• Production time is reduced
• Operator dependency is eliminated
